A table saw is one of the most versatile tools in any workshop, but understanding its parts is essential for safe operation and effective maintenance. Whether you’re replacing a worn blade, adjusting the fence, or troubleshooting a mechanical issue, knowing your Craftsman table saw’s components helps you make informed repairs and upgrades. This guide breaks down the critical parts of a Craftsman table saw and explains how each one works, so you can keep your saw running smoothly and your projects on track.
Key Takeaways
- Understanding Craftsman table saw parts like the blade, arbor, fence, and motor is essential for safe operation, effective maintenance, and making informed repairs.
- Always unplug the saw before replacing blades, and choose blade tooth counts based on your cutting type: 80–100 teeth for crosscuts and 24–40 teeth for ripping.
- The fence must be perfectly parallel to the blade for accurate cuts; use the micro-adjust knob to align it properly, and replace the entire assembly if it’s severely bent or won’t lock tight.
- Belt-drive systems are quieter and vibrate less than direct-drive, but require belt tension checks and periodic replacement every 2–3 years.
- Never operate the saw without a splitter and blade guard in place, keep hands at least 6 inches from the blade, and always use push sticks for narrow cuts to prevent kickback injuries.
- Maintain the cast-iron table surface by cleaning rust with a brass brush and applying paste wax, and keep the trunnion assembly clean and lubricated for smooth elevation and tilt adjustments.
Understanding the Blade and Cutting Assembly
The blade is the heart of your table saw, and understanding its anatomy matters for both safety and cut quality. A standard Craftsman table saw typically uses a 10-inch or 8-inch blade, with 10-inch being the most common for general woodworking. The blade itself has teeth that do the actual cutting, and the number and angle of those teeth depend on whether you’re crosscutting, ripping, or making specialty cuts.
Beneath the blade sits the arbor, a shaft that holds the blade in place using an arbor nut and washer. The arbor spins on bearings, and if you notice excessive vibration or wobbling, the bearings may need replacement. You’ll also find the blade guard directly above the cutting surface, more on that in the safety section.
When replacing a blade, always unplug the saw first. Blades wear out after hundreds of hours of cutting, especially when cutting abrasive materials like composite decking or treated lumber. A dull blade requires more pressure, generates excessive heat, and increases the risk of kickback. High-tooth-count blades (80–100 teeth) produce fine crosscuts, while low-tooth-count blades (24–40 teeth) handle ripping and faster cuts with less binding.
The blade elevation wheel lets you raise or lower the blade to control cutting depth. Many Craftsman models have a worm-gear elevation system, which provides smooth, precise height adjustment. Keep this mechanism clean and lightly lubricated, debris buildup can make adjustments sticky and imprecise.
The Fence and Guide Systems

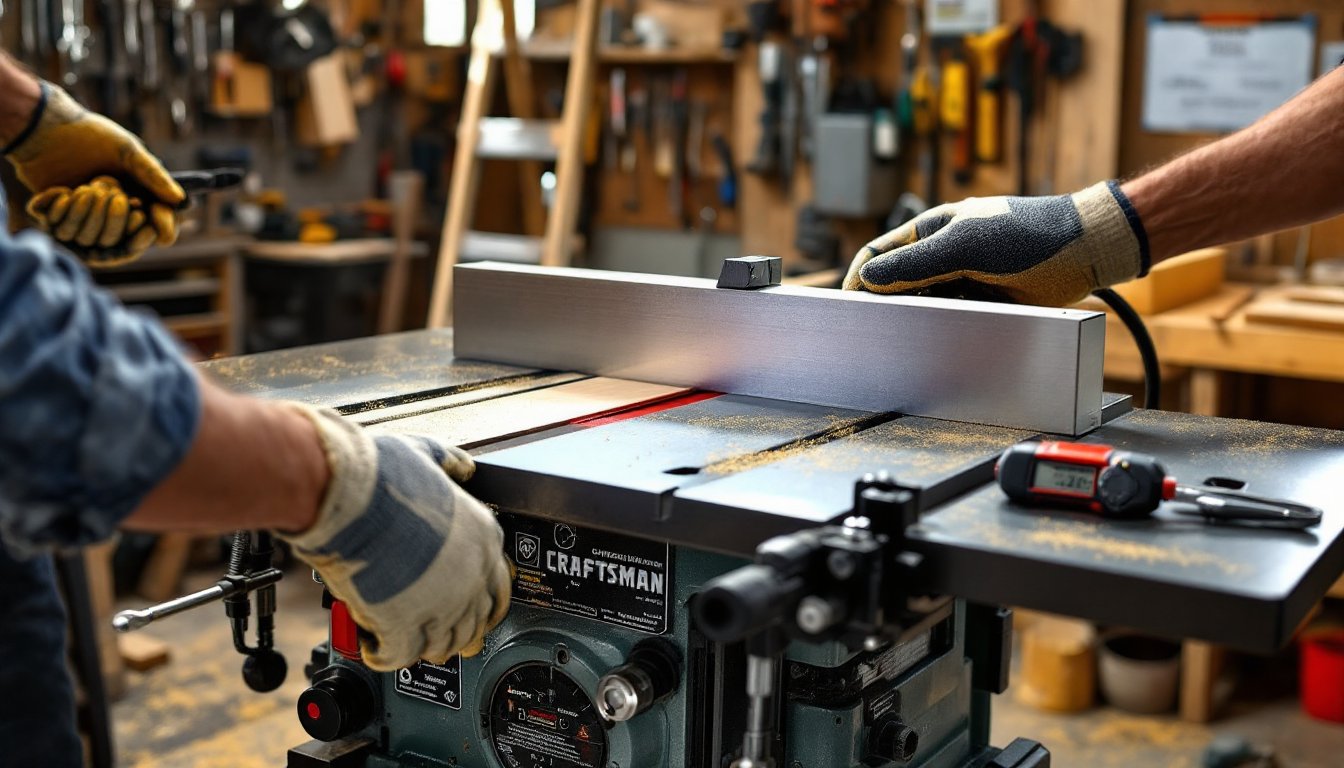

The fence is arguably the second most critical part of a table saw, because it’s what keeps your work square and straight. A Craftsman table saw fence typically consists of a front fence rail, rear rail, and locking handle. The front rail is usually aluminum, and the rear rail provides support for wider cuts.
To function properly, the fence must be perfectly parallel to the blade, even a slight deviation throws off every cut. If your rip cuts gradually taper, your fence is out of alignment. Most Craftsman fences have a micro-adjust knob that lets you dial in parallel alignment without moving the entire fence assembly. If the fence is severely bent or the locking mechanism no longer holds tight, the entire fence assembly may need replacement.
The miter gauge works along with the fence, riding in a slot on the table surface. It guides crosscuts at specific angles, usually 45 degrees and 90 degrees. Check that the miter gauge slides freely without excessive play, worn slots require table replacement, which is more involved than replacing individual parts.
Many woodworkers upgrade from a stock fence to an aftermarket auxiliary fence or face, which clamps to the existing fence to provide a higher cutting surface, better dust collection, and more precise reference points. Resources like detailed woodworking project plans show how to customize your fence setup for specific projects.
Motor and Drive Mechanisms
Most Craftsman table saws use a 1.5 to 2 HP induction motor, either direct-drive or belt-drive depending on the model. Direct-drive saws mount the motor directly to the arbor, while belt-drive models use a V-belt or serpentine belt to transfer power. Belt-drive systems are generally quieter and produce less vibration, but they require periodic belt replacement, typically every 2–3 years with regular use.
If your saw starts but runs slowly or sounds labored under load, check the belt tension first. A loose belt slips and won’t transfer full power: an over-tightened belt strains the bearings. Most Craftsman models have an adjustment bolt or sliding motor bracket that lets you tighten or loosen the belt without special tools. The belt itself is a wear item, replacements are inexpensive and take 15 minutes to swap out.
The motor capacitor is an often-overlooked component that helps the motor start and run smoothly. If your saw is slow to start, struggles to reach full speed, or makes a humming sound without the blade spinning, the capacitor may be failing. Capacitor replacement requires disconnecting the power cord and discharging the capacitor safely, if you’re not comfortable with electrical work, a technician is worth the cost.
For troubleshooting and hands-on guidance, home improvement tool reviews provide detailed breakdowns of common motor issues and rebuild steps.
Safety Features and Guards
Blade Guards and Covers
The blade guard is a plastic or metal shield that hangs over the blade, blocking accidental contact with the spinning teeth. On newer Craftsman saws, the guard is often integrated with the dust collection chute, which both protects you and pulls sawdust away from the cutting area. If the guard is cracked, won’t stay in place, or doesn’t retract smoothly when pushing material through, replacement is straightforward.
The splitter sits directly behind the blade and prevents the freshly cut wood from pinching back against the blade and shooting toward you, this is called kickback, and it’s one of the leading causes of serious table saw injuries. Splitters are usually bolted to the rear support post. If yours is missing or damaged, don’t operate the saw. A splitter typically costs under $50 and takes five minutes to install.
The anti-kickback pawls (also called flesh-eating pawls) hang in front of the splitter and have sharp teeth that grip the wood if it tries to move backward. These wear out over time and sometimes get bent. When they do, they’re one of the cheapest parts to replace.
Emergency Stop and Kickback Prevention
Earlier Craftsman models may not have an electric brake, but modern contractor-grade and cabinet saws often include a powered brake that stops the blade within seconds of power loss. Check your manual to see if yours has one, if it does, test it monthly by running the saw briefly and hitting the power switch to ensure the blade stops smoothly.
Kickback prevention starts with proper technique: never reach over or under a spinning blade, keep your body to the side, and always use push sticks for narrow rips. Keep your hands at least 6 inches away from the blade at all times. Wear ANSI Z535-compliant safety glasses and a dust mask or respirator when making long rip cuts, the fine dust created can accumulate in your lungs. Step-by-step DIY project tutorials often include safety setup demonstrations that show best practices in action.
Table Surface and Base Construction
The table surface is where your workpiece sits, and its flatness directly affects cut accuracy. Most Craftsman contractor saws use a cast-iron table top, which is durable but can rust if exposed to moisture. If you notice surface corrosion, clean it with a brass brush and apply a thin coat of paste wax or camellia oil to prevent rust progression.
Over time, the table can accumulate minor dents and scratches, but large gouges or deep rust pits affect how your material sits during a cut. A table top replacement is possible but expensive on larger saws. For cosmetic damage, a careful sanding and re-oiling often restores function enough to continue working.
Beneath the table sits the base, which provides structural support and often includes storage for blades, wrenches, and accessories. Contractor saws have a open base with bolts that mount to a stand or cabinet, while cabinet saws have a fully enclosed base with wheels. Check that all bolts and fasteners are tight, vibration gradually loosens them, and a loose base is a source of noise and inaccuracy.
The trunnion assembly connects the blade arbor and motor to the base and allows tilting and elevation adjustments. If your elevation or tilt wheels feel loose or grinding, the trunnion bearings may need lubrication or the adjustment mechanism may need tightening. Keep this area as clean as possible, sawdust buildup causes binding and wear. A properly maintained table saw, with attention to these foundational components, delivers consistent, safe cuts for years.
